Question 1

What are the hazards when digging?

Accepted Answer

There are several hazards that can arise when digging, including:

Utility strikes: Digging can damage underground utilities such as gas, water, electrical, or telecommunication lines, leading to service disruptions, injuries, or even fatalities.

Cave-ins or collapses: Trenches or excavations that are not properly supported or sloped can collapse, potentially burying workers or equipment and causing serious injury or death.

Falling objects: Materials or equipment that are not properly secured can fall into the excavation, posing a hazard to workers below.

Contact with hazardous materials: Excavation work may uncover hazardous materials such as asbestos, lead, or contaminated soil, which can pose a health risk to workers and the environment.

Equipment accidents: Heavy machinery used in digging, such as backhoes or excavators, can malfunction, tip over, or collide with other equipment, causing injury or damage.

Weather conditions: Extreme weather conditions such as heavy rain, snow, or strong winds can create hazards such as flooding, soil erosion, or falling objects.

It is essential to assess potential hazards before starting any digging project and take appropriate measures to mitigate these risks. This includes conducting site surveys to locate buried utilities, ensuring proper excavation support and sloping, wearing appropriate personal protective equipment, and implementing proper safety protocols and procedures.

Question 2

What are some of the hazards in underground construction?

Accepted Answer

Hazards in underground construction include confined spaces, excavation risks, electrical hazards, hazardous materials, noise and vibration, and traffic hazards. To mitigate these risks, workers should be properly trained and equipped with personal protective equipment, while employers should implement safety protocols and conduct regular inspections.

Question 3

What is the process of hydrovac excavation?

Accepted Answer

Hydrovac excavation, also known as hydro excavation, typically involves the following steps:

Site preparation: The area to be excavated is marked and prepared for the hydrovac truck to access.
Water injection: Pressurised water is injected into the ground using a handheld wand or nozzle. The water breaks up the soil and creates a slurry.
Vacuum extraction: A powerful vacuum system on the hydrovac truck is used to extract the slurry from the excavation site and put it into a holding tank on the truck.
Material disposal: Once the excavation is complete, the slurry can be disposed of in an appropriate manner, such as at a disposal site or in a designated location.

Hydrovac excavation is considered a non-destructive method because it uses pressurised water to break up soil and debris, which is then removed by a vacuum system. The process is designed to be precise and to minimise damage to buried utilities or other sensitive infrastructure. The operator can control the water pressure and excavation depth, allowing for accurate excavation. The use of hydrovac excavation can help reduce project time, improve safety on job sites, and minimise the risk of damage to underground utilities.

Question 4

Is GPR a safe testing technique?

Accepted Answer

GPR (Ground Penetrating Radar) is generally considered a safe testing technique when used by trained professionals following proper safety guidelines. It utilises non-ionising electromagnetic radiation and is non-invasive, making it a safer option than invasive methods. However, it's important to adhere to safe operating procedures, maintain proper equipment calibration, and communicate effectively when conducting GPR surveys. While GPR is generally safe, it's essential to be aware of its limitations and potential environmental considerations for optimal and responsible use.

Question 5

How does GPR equipment work?

Accepted Answer

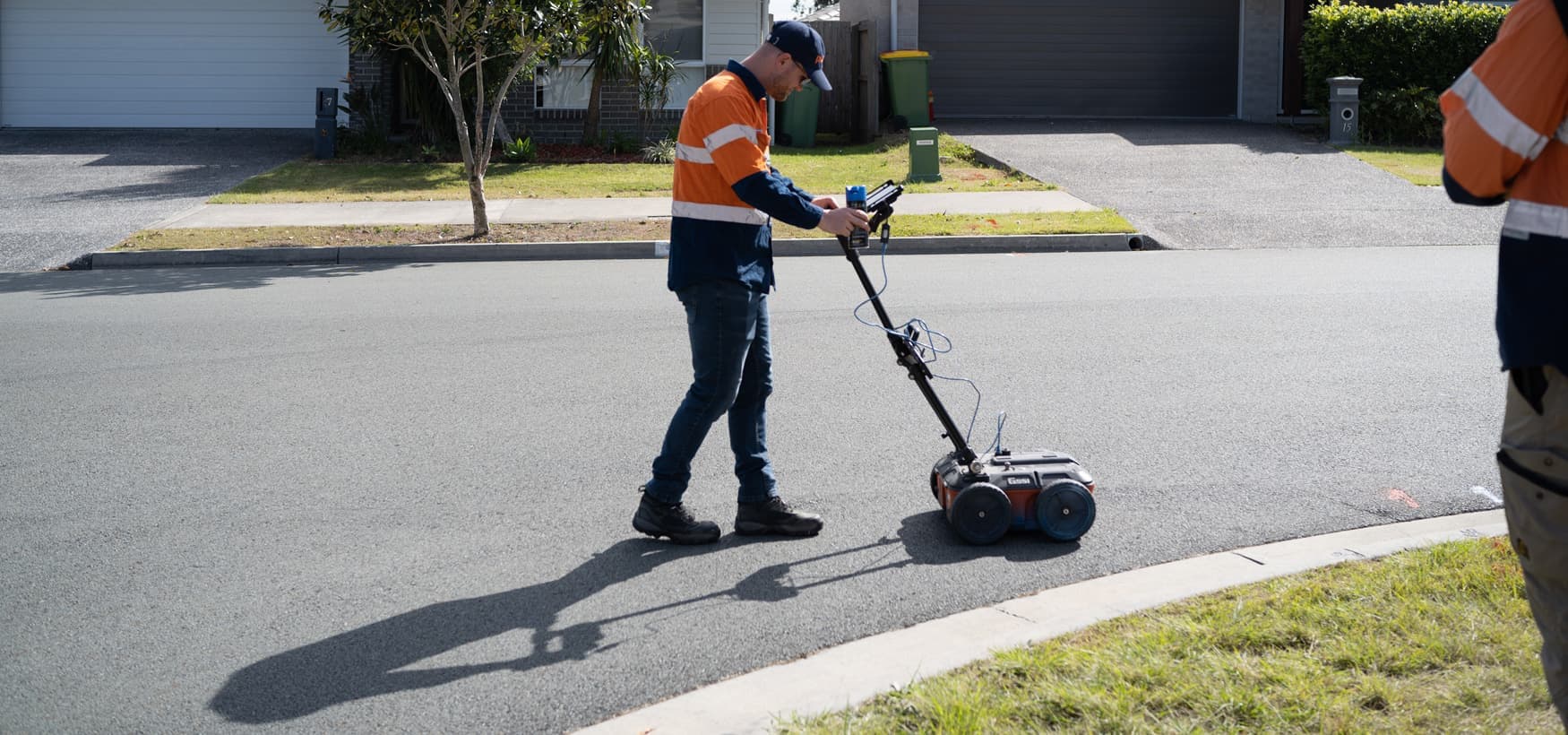

Ground Penetrating Radar (GPR) equipment operates by emitting electromagnetic pulses into the ground, which interact with subsurface materials and reflect back to the GPR antenna. The reflected signals are then processed by the GPR system's software to create cross-sectional images, known as radargrams, that display variations in signal strength over depth and distance. Skilled users, including geophysicists, engineers, and archaeologists, interpret the data to identify buried structures, archaeological artefacts, utilities, and anomalies. GPR's effectiveness is influenced by factors like soil composition, moisture content, and signal frequency, making it a versatile tool for various applications such as utility detection, archaeological surveys, and infrastructure assessments.

Question 6

Can GPR be utilised through water?

Accepted Answer

Yes, Ground Penetrating Radar (GPR) can be utilised through water, but its effectiveness is limited due to signal attenuation, refraction, and reflection caused by the properties of water. GPR signals can experience significant weakening as they travel through water, affecting the penetration depth and clarity of reflections. Specialised underwater antennas and careful interpretation are required for accurate results. While GPR can be valuable for certain applications in shallow water environments, its use in submerged settings is challenging and requires considerations of frequency selection and advancements in technology to optimise performance.

Question 7

How deep can GPR penetrate into the ground?

Accepted Answer

The depth to which Ground Penetrating Radar (GPR) can penetrate into the ground depends on several factors, including the frequency of the radar signal, the electrical conductivity of the ground, and the specific characteristics of the subsurface materials.

Low-frequency antennas (typically 25–100 MHz) can penetrate deeper, reaching depths of up to 15–30 metres (50–100 feet) in ideal conditions. However, the resolution of these antennas is lower.

High-frequency antennas (typically 200–1000 MHz) provide higher resolution images but have shallower penetration depths, typically up to 1-3 metres (3–10 feet) in most soils.

In general, the depth of penetration decreases in soils with higher moisture content or higher electrical conductivity, as these materials attenuate the radar signal more quickly. Therefore, the actual depth of penetration can vary significantly depending on the specific site conditions.

Question 8

What are some common applications of GPR in engineering and construction?

Accepted Answer

Ground Penetrating Radar (GPR) is widely used in engineering and construction for various applications. It is commonly used to locate and map underground utilities such as water, sewer, gas, and electrical lines, helping to prevent damage during excavation. GPR is also used for concrete inspection, assessing the condition of structures like bridges and buildings by detecting rebar, voids, and other defects non-destructively. Additionally, GPR is employed in road and pavement assessment to evaluate thickness and detect issues like moisture infiltration. It is also used in geological surveys to map bedrock, soil layers, and groundwater tables, aiding in construction planning. Archaeologists use GPR for mapping buried artefacts and structures without excavation, and it's used in environmental studies to map underground storage tanks, locate contaminant plumes, and assess soil or groundwater contamination. Overall, GPR's versatility and non-destructive nature make it a valuable tool for subsurface imaging and analysis in various fields of engineering and construction.

Question 9

What is the role of Ground Penetrating Radar (GPR) in environmental assessments?

Accepted Answer

Ground Penetrating Radar (GPR) plays a crucial role in environmental assessments by providing valuable information about subsurface conditions without the need for invasive drilling or excavation. In environmental assessments, GPR is used to locate and map underground storage tanks, pipelines, and other buried structures that may pose a risk of contamination. GPR can also be used to detect and map contaminant plumes in soil and groundwater, helping to identify the extent of contamination and plan remediation efforts. Additionally, GPR is used to assess the integrity of landfill liners and detect subsurface voids or sinkholes that may pose a risk to the environment. Overall, GPR helps environmental professionals gather essential data to make informed decisions about managing and protecting the environment.

Question 10

How accurate is GPR?

Accepted Answer

When used under optimal conditions and interpreted by experienced professionals, ground penetrating radar can provide accurate and detailed subsurface imaging. Its accuracy depends on several factors:

Depth and Resolution: GPR can accurately detect features and anomalies near the surface and at depths ranging from a few centimetres to several metres, depending on the equipment and soil conditions. Higher frequencies provide better resolution but have shallower penetration depths.
Soil and Material Type: The accuracy of GPR can vary based on the type of soil, rock, or material being scanned. GPR works best in conductive materials like clay and sand, while it may struggle in highly conductive materials like metal or water.
Interpretation and Expertise: The interpretation of GPR data requires expertise. Skilled operators and analysts can accurately interpret the radar signals and distinguish between different subsurface features, such as utilities, voids, pipes, and geological layers.

Survey Conditions: External factors such as moisture content, temperature variations, and electromagnetic interference can affect GPR accuracy.

Question 11

Does GPR work through any surface material?

Accepted Answer

GPR can penetrate through many types of surfaces and materials, but its effectiveness can vary depending on the properties of the material being scanned, such as the material’s composition and density. GPR is generally effective in rock, concrete, asphalt, sand, and soil, but the penetration depth and resolution in soil depend on soil type, moisture content, and mineral composition. GPR has limitations when it comes to detecting objects buried in highly conductive materials like metal or areas with high water content. Metal objects can produce strong reflections that can obscure other subsurface features, while water can attenuate radar signals, reducing penetration depth.

Question 12

Can you use GPR in all weather conditions?

Accepted Answer

GPR typically performs best in dry or moderate-moisture conditions because dry soils and surfaces allow radar signals to penetrate more effectively without significant attenuation. Some conditions that can impact GPR are:

High moisture content, such as during or immediately after heavy rain, can reduce the penetration depth and clarity of the data. For this reason, GPR may not be effective in very wet or flooded areas.
Extreme temperature changes can influence the speed of radar waves and may require adjustments to data interpretation.
Snow and ice can still be penetrated to some extent, depending on their thickness and density. However, deep or compact snow and thick ice layers may reduce penetration depth and signal clarity.
Lightning storms or electrical equipment nearby can introduce electromagnetic interference that may affect GPR data quality.

Wet or extreme weather conditions may require adjustments in equipment settings and data interpretation techniques to obtain accurate subsurface imaging.
